English Voice Broadcast Temperature Measure Metal Detector Gate With CE
• Accurate test body temperature
• Temperature check distance: 0.1-50cm
• Show temperature and alarm for fever
• Temperature deviation: 0.2-0.5
• High sensitivity to metal threats
• 18 zones overall inspection
• LED alarm light , located threats
Technical specification
| Electrical current | AC100V~240V 50/60Hz |
| Power | 10W |
| Work environment | -20℃~+45℃ |
| Gross Weight | 90kg |
| Outer frame | 2220mm (h) x 820mm (w) X 522mm (d) |
| Inner frame | 2000mm (h) X 700mm (w) X 522mm (d) |
Characteristic
- Two LED light bars on both door panels: gives alarm corresponding to the height or human body.
- 6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
- Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
- Sensitivity adjustable from Level 0 to 300
- High: Can detect a clip
- Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
- Shock proof to avoid false alarm
- Sound and light alarm
- Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
- Tamper-Proof: operate program is protected by password.
- Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
- Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
- Harmless to pregnant woman and heart pacemaker
- Remote controller optional
- Connect with computer, camera, turnstile, etc optional
Standards &Certificates
- ISO9001
- ISO14001
- HSMS18001
- CE
- Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
- In accordance with: EN60950, WN50081-1, EN50082-1
- Electric safety: EN60950
- Anti-interference standard: EN50082-1

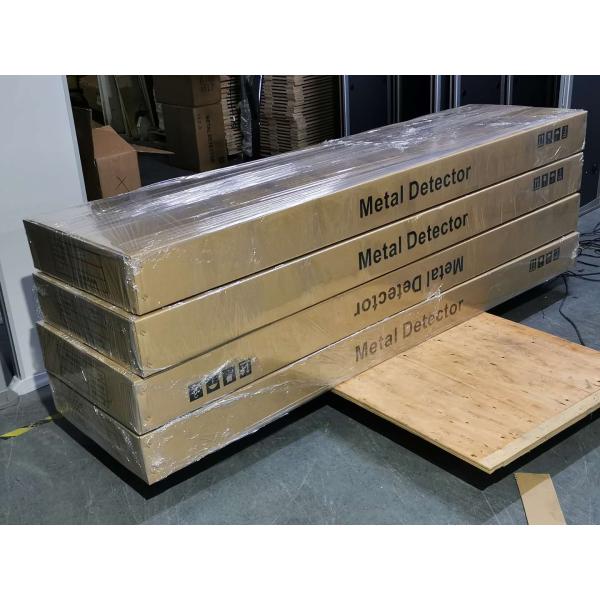

Shipping and Packing
Our service
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life.
After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
